| Product Type: | GSM Outdoor Antenna | Weight: | 0.53kg |
|---|---|---|---|
| Dimensions-mm: | 208*178*45 | Frequency: | 850/900/1800/1900MHz |
| Features: | Waterproof，light Weight | Color: | White |
| Intermodulation IM3: | ≤-107-dBm | VSWR: | ≤1.5 |
| Highlight: | Small GSM Outdoor Antenna,Light Weight GSM Outdoor Antenna,1900MHz waterproof antenna |
||

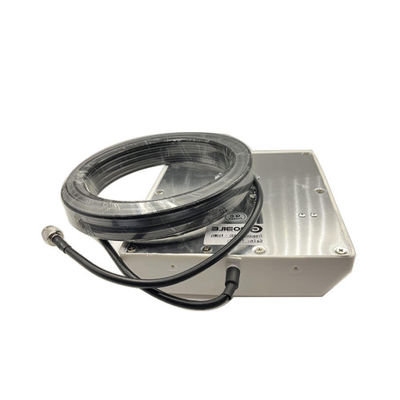

High Quality GSM Outdoor Antenna Waterproof Light Weight Easy To Use
GSM Outdoor Antenna Features:
1. Light Weight, Small Size
2. UV Stable ABS Radome
3. Waterproof
4. Supplied with Down-tilt Mast Mounting Kit
GSM Outdoor Antenna Specifications:
| Model | ZX900 | Impedance-Ω | 50 |
| Freq.Range-MHz | 824-960/1710-2500-MHz | Polarization | Vertical |
| Bandwidth-MHz | 136/79O-MHz | Max. Power-W | 100 |
| Gain-dBi | 10 | Connector | N Female or Customized |
| Beamwidth | H:65-.E:55-° | Dimensions-mm | 208*178*45 |
| intermodulation IM3 | ≤-107-dBm | Weight-Kg | 0.53 |
| VSWR | ≤1.5 | Color | White |
GSM Outdoor Antenna Manufacturer Services:
1. Logo print/start logo;
2. Custom language/keyboard language;
3. Customized gift box, carton, and user manual;
4. Custom label, IMEI, etc.
