| Brand Name: | Gmobile |
| Model Number: | ZX-450 |

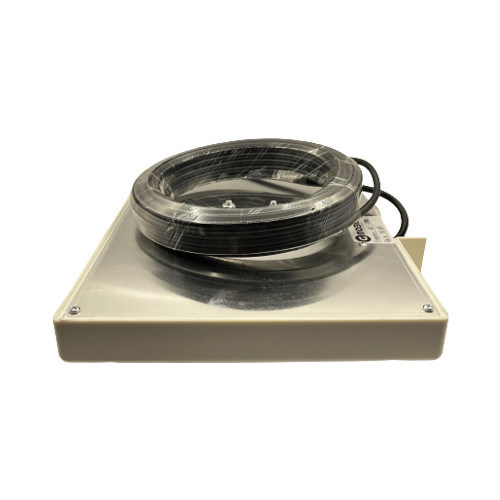

High Speed CDMA Outdoor Antenna Stable Performance Strong Signal
CDMA Outdoor Antenna Features:
1. Light Weight, Small Size
2. UV Stable ABS Radome
3. Waterproof
4. Supplied with Down-tilt Mast Mounting Kit
CDMA Outdoor Antenna Specifications:
|
Model |
ZXET-450 |
|
Freq.Range-MHz |
430-470 |
|
Bandwidth-MHz |
40 |
|
Gain-dBi |
15 |
|
Beamwidth-? |
E:120 H:85 |
|
F/B Ratio-dB |
≥15 |
|
VSWR |
<2 |
|
Impedance-Ω |
50 |
|
2Polarization |
Vertical |
|
Max.Power-W |
50 |
|
Connector |
N Female or Customizea |
|
Dimensions-mm |
240*230*50 |
|
Weight-Kg |
0.96 |
|
Color |
White |
|
Pole Diameter-mm |
φ 40-50 |
CDMA Outdoor Antenna Manufacturer Services:
1. Logo print/start logo;
2. Custom language/keyboard language;
3. Customized gift box, carton, and user manual;
4. Custom label, IMEI, etc.
|
