| Brand Name: | Gmobile |
| Model Number: | ZX900 |

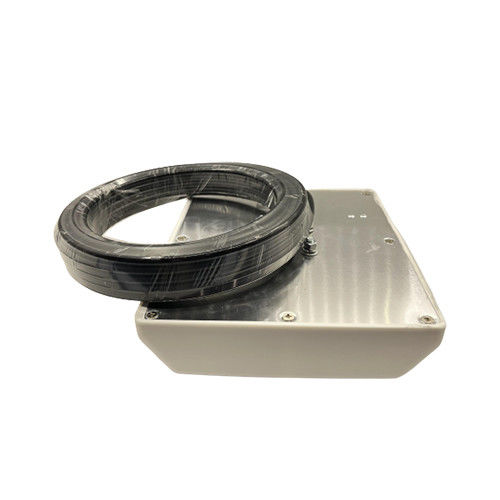

2G Antenna GSM Outdoor Antenna Small Volume Easy To Install Good Signal
GSM Outdoor Antenna Features:
1. Light Weight, Small Size
2. UV Stable ABS Radome
3. Waterproof
4. Supplied with Down-tilt Mast Mounting Kit
GSM Outdoor Antenna Specifications:
| Model | ZX900 | Impedance-Ω | 50 |
| Freq.Range-MHz | 824-960/1710-2500-MHz | Polarization | Vertical |
| Bandwidth-MHz | 136/79O-MHz | Max. Power-W | 100 |
| Gain-dBi | 10 | Connector | N Female or Customized |
| Beamwidth | H:65-.E:55-° | Dimensions-mm | 208*178*45 |
| intermodulation IM3 | ≤-107-dBm | Weight-Kg | 0.53 |
| VSWR | ≤1.5 | Color | White |
GSM Outdoor Antenna Manufacturer Introduction:
Shenzhen Liangfeng Technology Co., Ltd. keeps up with the changes in the world and becomes the best partner in the global mobile phone OEM industry. We are one of the leading manufacturers of mobile phones, USB modems, wi-fi routers, MiFi, UFI, WLL(FWT), and pos. Based on CDMA technology in China. Quality, service, speed, cost, and flexibility are at the core of our competitiveness. Execution of "speed and precision" is the core of our growth.
|
